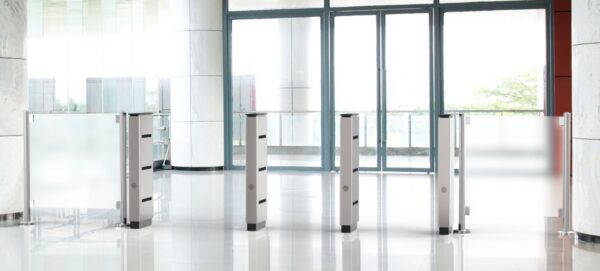

ClearPass CP2000 Optical Counting Turnstile

Sophisticated Counting Turnstile

The CP2000 is a patron counting turnstile, but updated for the information age. This barrier-free patron counting turnstile uses a sophisticated optical beam array to detect and count passing patrons in either one or both directions. The CP2000 can even sound an alarm when passage in the incorrect direction is detected, adding an extra layer of protection for your access control system. This compact and modern counting turnstile is a TCP/IP enabled device, allowing it to instantly communicate data with other networked devices. The CP2000 can even be integrated via a momentary dry contact for simple and direct integration. The CP2000’s included browser-based configuration software transforms any networked device with access to a web browser (PC, smartphone, tablet, laptop) into a remote lane configurator. Instead of plugging into individual turnstile lanes, simply use your personal device to install software updates and access your CP2000’s core settings. Step up your analytics and monitoring with our optional ClearCount browser-based software. ClearCount integrates remotely with any networked CP2000, instantly pulling counting information to provide entry numbers, exit numbers, in-venue totals, and more all in a clean and modern interface with extensive reporting capabilities.

ClearPass CP2000 Optical Counting Turnstile Benefits:

  • Touchless patron counting solution
  • Narrow profile stainless steel cabinet with optional ADA compliant lane widths
  • Simple installation and integration with dedicated inputs and outputs
  • Ships fully assembled
  • Included browser-based lane configuration software
  • Optional ClearCount browser-based counting software

ClearPass CP2000 Optical Counting Turnstile PDF Downloads:

category CP2000 Optical Counting Turnstile Brochure

Want to Specify This Product? Contact Us Today to Gain Access to Our Specifications and Submittal Packages!



Need Installation?

Hayward Turnstiles has a nationwide network of partner installers. Our team is happy to coordinate installation with one (or multiple) of our certified installers who will handle the purchasing, installation, and integration of turnstiles and gates for you. One point of contact. One comprehensive warranty. One goal: complete project satisfaction.

Contact Us to Begin Your Project!

Applications

Applications:

Specs

Price Range

Cost Effective

Passage Width

Standard Lane: 28" or 711.20mm
ADA Compliant Wide Lane: 36" or 914.40mm
(Additional widths available upon request)

Housing Material

#304 Stainless Steel with #4 Satin Finish

Bi-directional

Yes

Visible/Audible Alerts

Yes

Remote Monitoring Software

ClearCount Software (optional)

Details

ClearPass CP2000 STANDARD FEATURES


Hands-free Operation:

Quick and smooth touchless turnstile operation with integrated optical beam detection to sense when consumers pass through the turnstile’s lane.

Optical Detection:

Strategically placed optical sensors detect passage with high accuracy which then can be used to gather data on traffic patterns, log attendance numbers, and even detect wrong-way entrances.

Browser-based Lane Configuration Software:

Each CP2000 comes standard with a browser-based software that allows you to configure your lanes from any connected computer, smartphone, or tablet. As long as you are connected to the same network as your turnstiles and have access to a web browser, you can configure your turnstiles simply and efficiently. Such configuration changes include changing alarm sounds, customizing detection settings, fine-tuning alarm timer settings, and much more. Our browser-based application eliminates the need to physically plug into individual turnstiles to change configurations or update software.

Ethernet Port Connectivity:

For when your turnstiles are not networked, adjustable features can still be configured and customized. By simply downloading our lane control software onto a laptop, you can plug directly into the included Ethernet port on your turnstile and have access to the same controls as our browser-based software.

Premium Cabinet Construction:

Cabinets are fabricated from #304 stainless steel polished to a #4 satin finish with a Livingstone solid surface lid.

Audible Alerts:

Integral buzzers chime to indicate you of wrong-way entry when your CP2000 is configured for single direction passage.

Bi-directional Access:

Can be set up for single or bi-directional access counting.

Easy Lane Configuration:

  • Browser-based lane configuration from any networked device
  • Onboard Ethernet port for direct access to lane configuration

Easy Installation:

Each CP2000 ships fully assembled for easy installation on site. The CP2000 can be used indoors or for select outdoor installations.

Quality Control:

Every unit is inspected, tested, and certified before shipment.

Options

ClearPass CP2000 ADDITIONAL OPTIONS


Lane Mounting Platform:

You can use the Lane Mounting Platform to mount your CP200 cabinets on a pedestal base to minimize floor drilling and allow for above-floor wiring. This option is great for turnstile installations in lobbies where the floor has already been finalized.

ClearCount Browser-Based Counting Software:

Use our clean and modern interface to check attendance counts at a glance remotely from your networked device.

Alternate Lid Colors and Materials:

Lids provided in your choice of any available solid surface color.

Alternate Cabinet Colors and Materials:

Powder coated and plated cabinets available in a multitude of colors.

External Power Supply Enclosure:

Portable enclosure for remote installation of CP2000 power supply. The enclosure houses 3 power supplies (one per turnstile lane).

Count Controller:

This controller accepts dry contact count data and communicates it to other devices via RS-485 or over a TCP/IP network.

Wall Display:

Counting information outputs from the CP2000 can be projected on a large four-digit wall display. This option requires the count controller which communicates with the display via RS-485.

*More options and customizations available on request

Dimensions

ClearPass CP2000 DIMENSIONS

Please contact us for multi-lane dimensions and custom lane widths.

PDF

ClearPass CP2000 PDF Downloads

category CP2000 Optical Counting Turnstile Brochure

*Architects and specifiers should contact us for submittal packages, installation manuals, and more information about this product.
