HT431 SecureTurn Full Height Turnstile (Standard Passage Width)

Best Selling Full Height Turnstile

The SecureTurn HT431 standard passage is our flagship full height turnstile. It is our most popular full height turnstile because it is extremely dependable, easy to install, and made right here in our USA-based manufacturing facility. The HT431 offers a comfortable passage width of 31 inches and it can conveniently integrate with virtually any access control software or hardware. Plus, each HT431 full height turnstile comes with 3 free safety sleeves to enhance usability and add protection.

Product Benefits

  • Standard passage width
  • Full height for maximum security
  • Self-centering mechanism
  • Strong and durable- Made in the USA
  • Built tough to last a lifetime
  • FREE Safety Sleeves

HT431 SecureTurn Full Height Turnstile (Standard Width) PDF Downloads

category HT431 Full Height Turnstile Brochure

specification-new HT431 Full Height Turnstile Architectural Specifications

Want to Specify This Product? Contact Us Today to Gain Access to Our Specifications and Submittal Packages!



Need Installation?

Hayward Turnstiles has a nationwide network of partner installers. Our team is happy to coordinate installation with one (or multiple) of our certified installers who will handle the purchasing, installation, and integration of turnstiles and gates for you. One point of contact. One comprehensive warranty. One goal: complete project satisfaction.

Contact Us to Begin Your Project!

Applications

Applications:

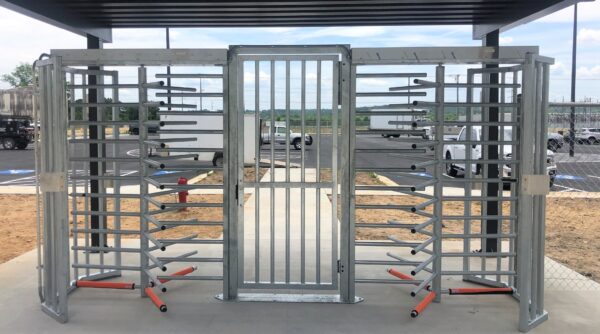

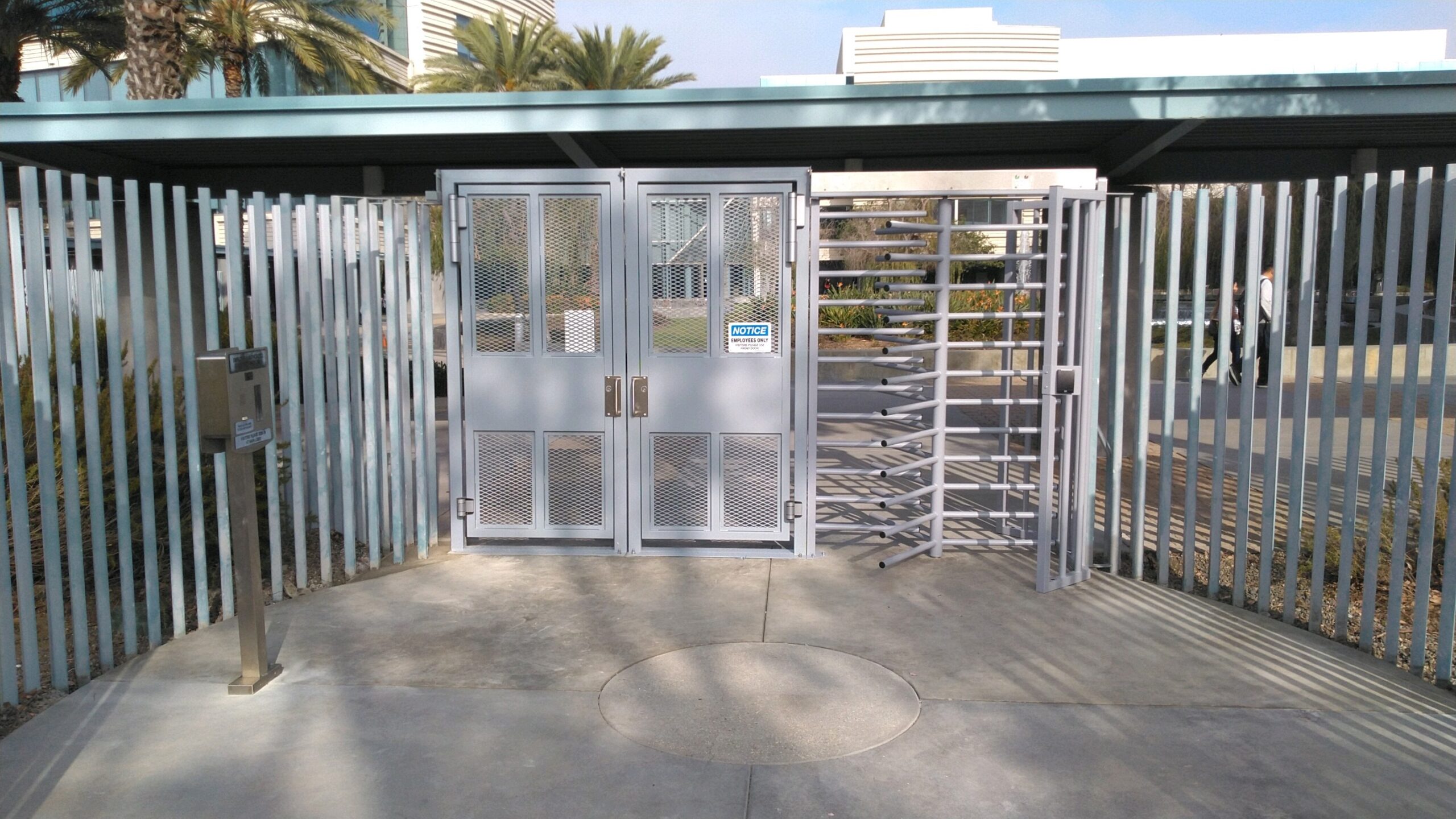

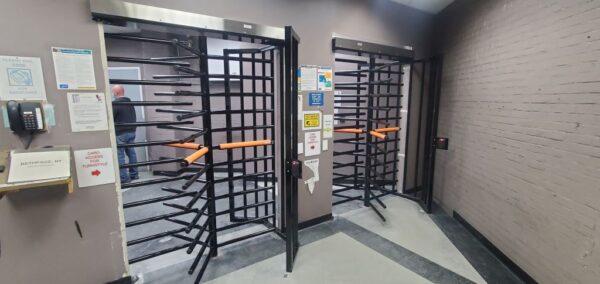

Our SecureTurn HT431 standard passage fits perfectly for when floor to ceiling security is required. It can be integrated with virtually all access control readers and software, making it the perfect high-security entrance device or perimeter security solution. HT431s are often integrated into fencelines and are often used outdoors to increase security and control access into and out of facilities. Our HT431 matches our HTG-M full height ADA gates in both size and appearance, making them the perfect pair for when handicap access is required. Construction sites, factories, fulfillment warehouses, detention centers, public transportation, and more all benefit from the added perimeter security and access control offered by an HT431 full height turnstile. Indoors or outdoors, the HT431 full height turnstile is perfect for any high security or access control application.

Materials and finishes available in:

  • Hot Dip Galvanized Steel
  • Powder Coated Steel

Other single passage models in this series:

SecureTurn HT439 Wide Passage 39″

SecureTurn HT448 Extra Wide Passage 48″

Double passage models in this series:

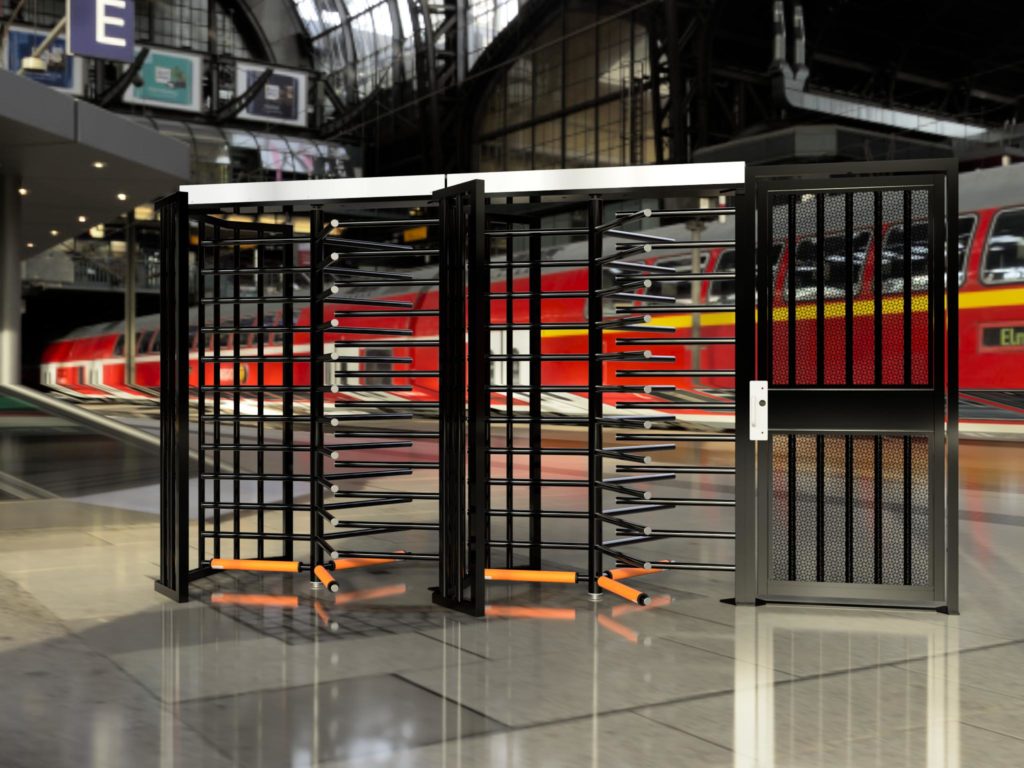

SecureTurn HT431T tandem size for standard passage consists of (2) SecureTurn HT431 in a space-saving layout.

Padded Safety Sleeves help prevent accidents and enhance turnstile usability (optional):

Prevents injuries – Reduces bruising – Stops heel slams

Softens impacts – Easy-grab cushion grip

Cool to the touch in heat – Insulates bars in cold

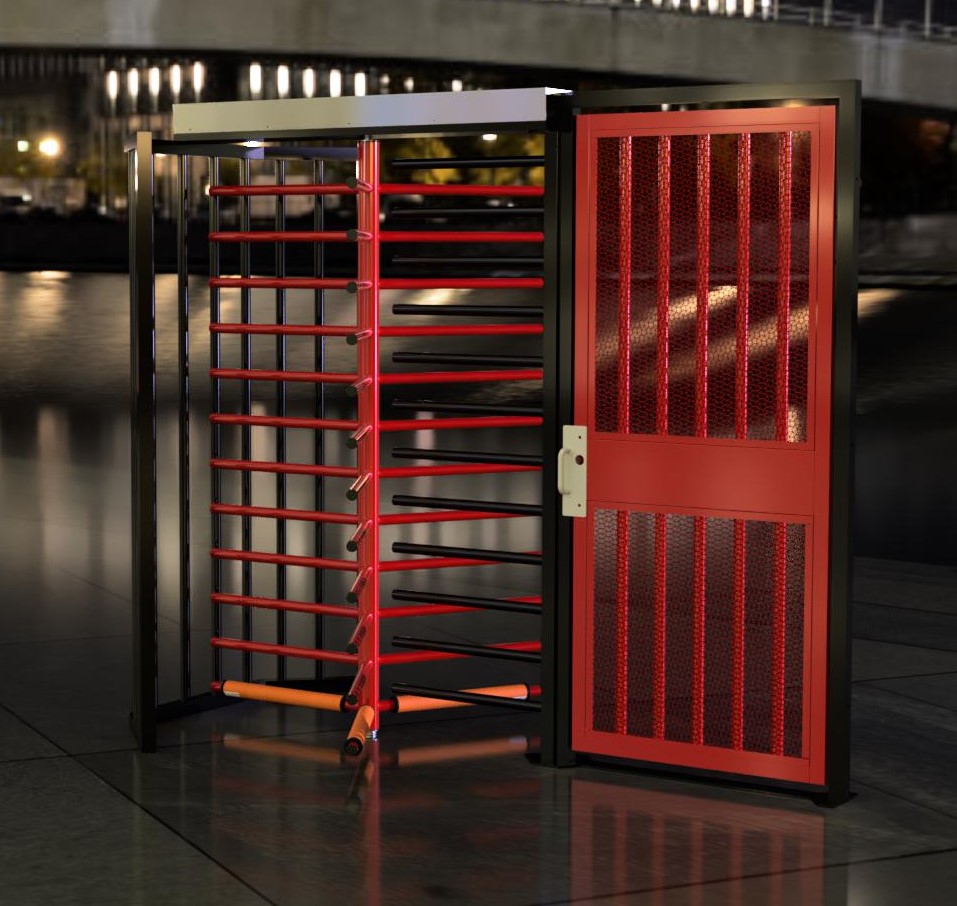

Matching ADA Compliant Full Height Gate:

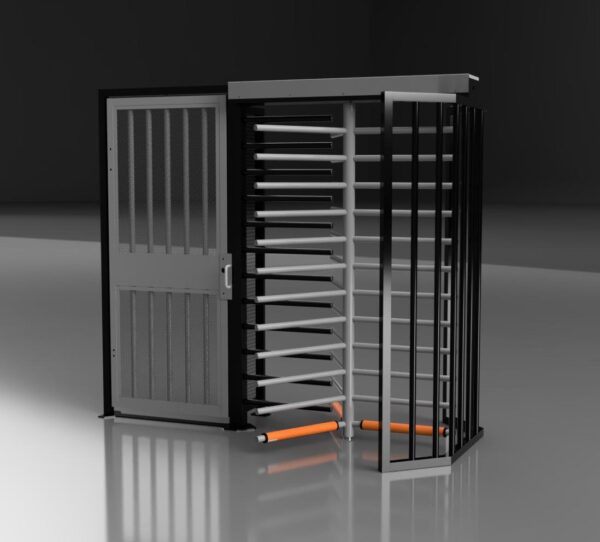

HTG-M Full Height ADA Handicap Gate

Specs

Finish

Galvanized, Powder Coat, Stainless

Passage Width

Standard

Overall Width

62.375"

Safety Sleeves

Free Heel Pack (3 Sleeves)

Electronic Entry/Exit

Optional

Reader Mounting Plates

Optional

Electronic Counter

Optional

Key Override

Optional

Status Indicator Lights

Optional

Matching ADA Gate

HTG-M

Mounting Surface (level)

Concrete Recommended

Details

HT431 SecureTurn Full Height Turnstile (Standard Passage Width) Details

Product Features:

Materials and finishes in your choice of:

  • Hot dipped galvanized steel
  • Powder Coated steel

Design & Construction:

  • Designed for secure operations with aesthetics in mind
  • Choice of right or left handed direction
  • Fully welded exterior components
  • Heavy-duty lifetime construction

Turnstile Operation:

  • Self-centering mechanism with hydraulic shock suppression
  • Permanently lubricated bearings
  • Clockwise, counterclockwise, or bi-directional passage

Electrical Specifications:

Power supply input 100-240VAC (.7 amp) 50/60hz output
24VDC (1.1 amp) All components UL recognized

Warranty:

Units are warranted against defects in materials and
workmanship for a period of one year from date of
delivery. See warranty information for specific details.

Options

HT431 SecureTurn Full Height Turnstile (Standard Passage Width) Options

Options:

  • Electronic locking module featuring heavy-duty 24 VDC
    solenoids that can integrate with virtually all access control software and hardware via a momentary dry contact
  • Choice of fail safe (unlock on power loss) or fail secure (lock
    on power loss) for electric units only
  • Card reader mounting plates (electric units only)
  • Key override for electric or manual units (both directions)
  • Red/Green indicator lights (electric units only)
  • Safety Sleeves (Safety Orange or Steel Gray)
  • Heavy-duty lock bar (includes HD padlock)
  • Home position switch
  • Full and half canopies (yolk guards)
  • Additional options available upon request

Dimensions

HT431 SecureTurn Full Height Turnstile (Standard Passage Width) Dimensions

category HT431 Full Height Turnstile Complete Dimensions

PDF

HT431 SecureTurn Full Height Turnstile (Standard Passage Width) PDF Downloads

category HT431 Full Height Turnstile Brochure

specification-new HT431 Architectural Specifications

*Architects and specifiers should contact us for submittal packages, installation manuals, and more information about this product.
