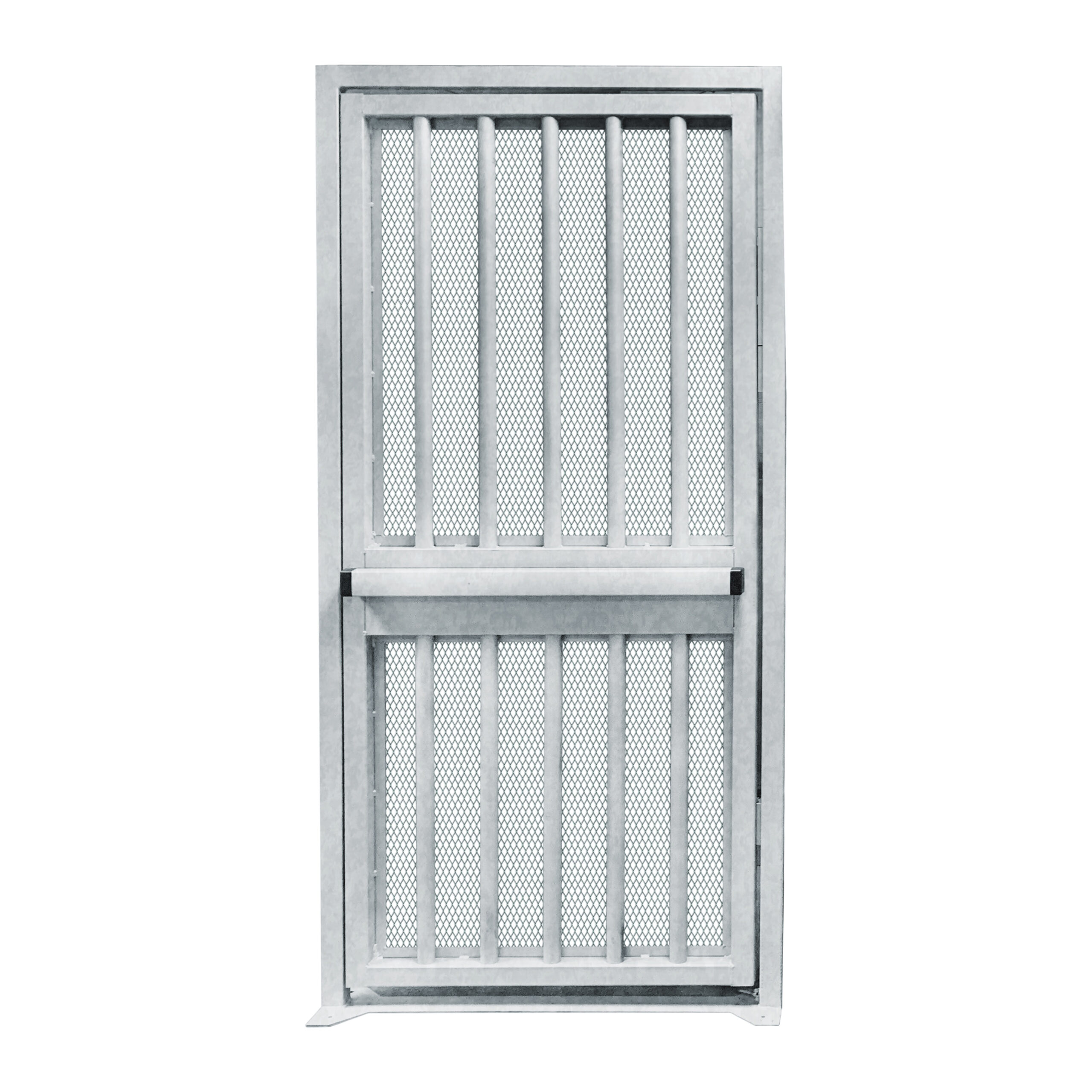

HTGM full height ADA Gate full length panic bar

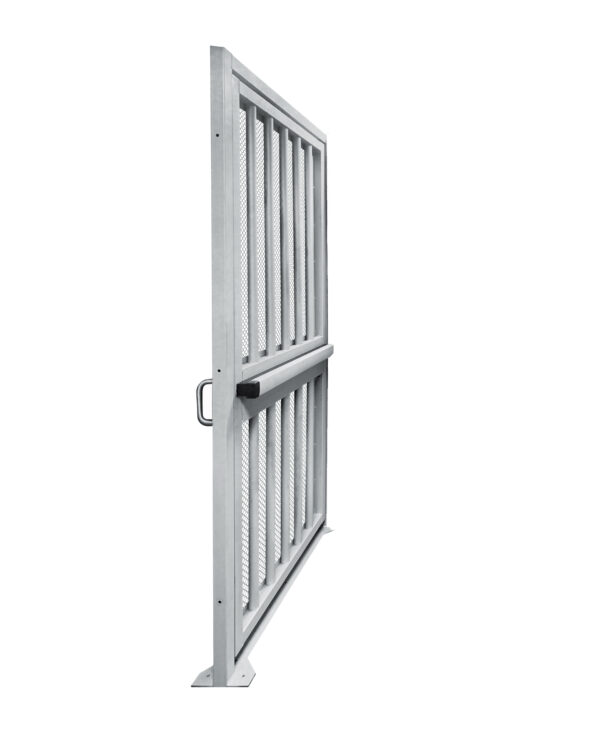

HTG-M Mesh Full Height ADA Gate

Our HTG-M full height gates with mesh infill provide the same floor to ceiling level of security coverage as our full height turnstiles while simultaneously providing an ADA compliant clear opening for disabled entrants. These HTG-M full height gates are outfitted with mesh infill for advanced reach through protection and can even come from the factory with an optional panic bar to be your perfect emergency exit solution. Our HTG-M works great as a standalone access control solution, but it really shines when paired with one of our SecureTurn series full height turnstiles to provide a comprehensive access control solution. All Hayward Turnstiles full height ADA gates are designed for handicap access, but they are also often used as an alternate entrance for people with push carts, deliveries, strollers, tools, and any other object that would not easily fit through a regular full height turnstile.

Product Benefits

  • Matches SecureTurn full height turnstiles
  • ADA compliant lane width
  • Mesh infill to prevent reach through and enhance security
  • Optional Mesh infill panels (pictures 2 and 4) available to protect against reach around from full height turnstiles
  • Integrates via dry contact with virtually all access control hardware and software

HTG-M Full Height Gates PDF Downloads

category HTG-M Full Height ADA Gate Brochure

category Reach Prevention Mesh Panel Brochure

specification-newHTG-M Full Height ADA Gate Architectural Specifications

Want to Specify This Product? Contact Us Today to Gain Access to Our Specifications and Submittal Packages!



Need Installation?

Hayward Turnstiles has a nationwide network of partner installers. Our team is happy to coordinate installation with one (or multiple) of our certified installers who will handle the purchasing, installation, and integration of turnstiles and gates for you. One point of contact. One comprehensive warranty. One goal: complete project satisfaction.

Contact Us to Begin Your Project!

Categories: , , , , , , , , , , , , , SKU: HTGM

Applications

Applications:

Our HTG-M is the perfect solution for anyone looking to harness the floor to ceiling security of a full height turnstile without sacrificing handicap accessibility. This full height ADA compliant gate features reach prevention security mesh infill to ensure no users are able to reach through the unit and open it from the other side. Our HTG-M isn’t just for handicap access, though. It is a great solution for entrances that frequently require larger objects to pass through like tool boxes, luggage, hand trucks, and more that wouldn’t fit easily through the entryway of a conventional full height turnstile. Beyond this, our HTG-M is the perfect emergency exit solution when equipped with our optional full length panic bar that allows users to easily exit during an emergency without letting anybody in the other direction.

Materials and finishes available in:

  • Hot Dip Galvanized Steel
  • Powder Coated Steel (custom colors available)

Matching SecureTurn Full Height turnstiles:

SecureTurn HT431 Standard Passage 31″

SecureTurn HT439 Wide Passage 39″

SecureTurn HT448 Extra Wide Passage 48″

SecureTurn HT431T Tandem Size for double passage

Specs

Price Range

Competitively Priced
Finish

Galvanized, Powder Coat
Width

Total Width: 40.75"
Door Width: 36"
Full Panic Bar

Included
Self Closing Hinge

Included
Manual Key

Included
Electronic Entry/Exit

Included
85dB Panic Bar Alarm

Optional
Electronic Push Button

Optional
Reader Mount Plates

Optional
Mesh Infill Panels

Optional

Details

HTG-M Full Height Gate Details

Product Finish:

Available in your choice of galvanized or powder coated finish to match your entryway or pair perfectly with one of our full height turnstiles.

Design & Construction:

  • Designed as an ADA compliant solution for perimeter security
  • ADA compliant passage width
  • Fully welded exterior components
  • Built from heavy gauge materials that meet ASTM standards
  • Vertical steel bars coupled with steel mesh infill keep unauthorized entrants out and prevent reach through and tampering
  • Minimally exposed, tamper proof hardware

Gate Operation:

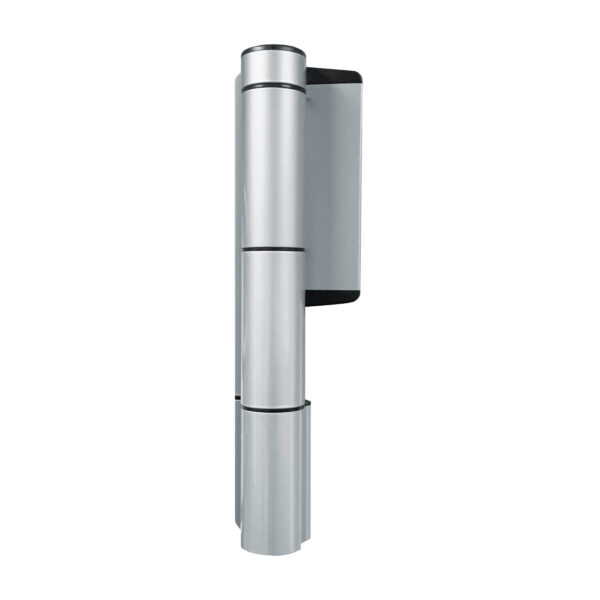

  • Gate automatically closes with included self closing hinge
  • Field reversible electronic strike lock (24VDC) included
  • Strike lock can be used mechanically with a key or electronically when integrated with virtually any access control software via a momentary dry contact

Electrical Specifications:

UL Approved Electronic Strike: Input Voltage: 24VDC Input Current: 170 mA

Warranty:

Units are warranted against defects in materials and workmanship for one year.

Options

HTG-M Full Height Gate Options

Options:

  • Push Operated Panic Bar for Free Exit Situations (Included)
  • Kick plate (for compliance in certain states)
  • 85dB Panic Bar Alarm
  • Card Reader Mounting Plates
  • Reach Prevention Infill Panels
  • Push Buttons
  • Additional Options Available Upon Request

Dimensions

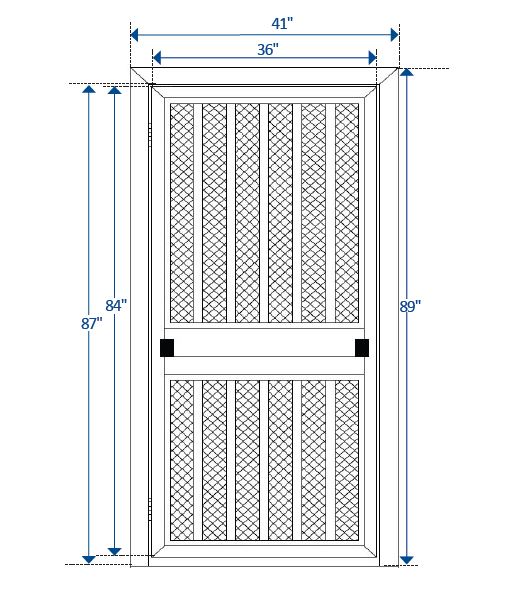

HTG-M Full Height Gates Dimensions

full height gate drawing with dimensions in blue

category HTG-M Full Height ADA Gate Dimensions Hayward Turnstiles



PDF

HTG-M Full Height Gates PDF Downloads

category HTG-M Full Height ADA Gate Brochure

category Reach Prevention Mesh Panel Brochure

specification-newHTG-M Full Height ADA Gate Architectural Specifications
