The HTSG full height gate is built to industrial-grade specifications and is an ideal product for high-security areas. The heavy-duty model is a real workhorse and it is built for a lifetime of performance. When you need the ultimate entry solution, this high-performance gate is the best choice. The HTSG is available in galvanized, powder coat, or stainless steel, and may also be finished in custom vibrant colors. It has a full line of options and can easily be configured to fit your project needs.
Want to Specify This Product? Contact Us Today to Gain Access to Our Specifications and Submittal Packages!
Need Installation?
Hayward Turnstiles has a nationwide network of partner installers. Our team is happy to coordinate installation with one (or multiple) of our certified installers who will handle the purchasing, installation, and integration of turnstiles and gates for you. One point of contact. One comprehensive warranty. One goal: complete project satisfaction.

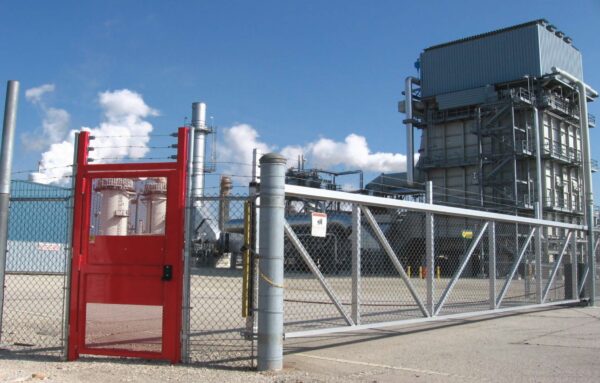

The HTSG High Security gates are manufactured to commercial
grade specifications and are designed to perform in the harshest
environments. They are a popular choice for high-security areas
and industrial use at places like chemical plants, power stations,
and refineries.
Built from heavy gauge, military-grade steel, the HTSG door
assembly is fully welded and features stainless steel hinges for a
lifetime of reliable performance. The frame is tamper-resistant,
with rigid expanded metal grating top and bottom. The unit
also includes a push bar for quick exit and emergency egress.
Shipped pre-assembled, this unit installs quickly and integrate easily
into existing fence lines.
Specs
Price Range
Premium Value
Finish
Galvanized, Powder Coat, Stainless
Width
36"
Full Panic Bar with Mesh
Included
Hydraulic Closer
Included
Manual Key
Included
Electronic Entry/Exit
Included
Electronic Push Button
Optional
Reader Mounting Plates
Optional
Mounting Surface (level)
Concrete or Ground
Details
HTSG Gate Full Height Turnstile Details
Applications:
The HTSG High Security gates are manufactured to commercial
grade specifications and are designed to perform in the harshest
environments. They are a popular choice for high-security
areas and industrial use in areas like chemical plants,
power stations, and refineries.
Materials And Finishes Available In:
Hot Dipped Galvanized Steel
Powder Coated Steel
Glow-in-the-Dark (indoor use only for power failure)
Stainless Steel
Design & Construction:
3″ x 3″ heavy weight 11 gauge steel
Industrial grade expanded metal grating
Stainless steel high-performance hinges
Built for harsh and extreme environments
Heavy-duty, durable, and long-lasting construction
Standard Features:
Choice of right or left-handed swing.
Exit push-bar with keyed entry.
Aluminum push-bar shield for tamper resistance and
weather protection.
Barb arm extensions for extra height
Subterranean cross members for below ground mounting,
or diamond plate steel for above ground installation
Warranty:
Units are warranted against defects in materials and workmanship for one year.
Options
HTSG Gate Full Height Turnstile Options
Options:
Self-closing hydraulic gate
Vertical pickets behind metal grating
Push-bar with electric or mechanical keypad,
or reader interface
HTSG High Security Full Height ADA Compliant Gate Brochure
HTSG Full Height ADA Gate Architectural Specifications
