SG100 SwingGate ADA

The SG100 is a durable yet stylish self-closing swing gate. This round corner gate is available in a standard ADA compliant lane width, but can easily be modified to fit your needs. Furthermore, custom rails can be added to fill any remaining open space. The SG100 is our least expensive and best-selling gate because it offers great value at a reasonable price.

Product Benefits

  • Entry-level
  • Rounded corners
  • One way swing
  • ADA & custom size lane widths
  • Post & rail option to fill open space

SG100 SwingGate ADA PDF Downloads

category SG100 ADA Compliant Swing Gate Brochure

category SwingGate SG100 ADA Compliant Pedestrian Gate Specifications

Want to Specify This Product? Contact Us Today to Gain Access to Our Specifications and Submittal Packages!

Need Installation?

Hayward Turnstiles has a nationwide network of partner installers. Our team is happy to coordinate installation with one (or multiple) of our certified installers who will handle the purchasing, installation, and integration of turnstiles and gates for you. One point of contact. One comprehensive warranty. One goal: complete project satisfaction.

Contact Us to Begin Your Project!



The SG100 is our most affordable, economically priced rounded corner, self-closing gate. The stainless steel frame is strong, durable and built tough for long lasting reliable performance. Popular applications also include retail stores, schools, libraries, cafeterias, and health club facilities where inexpensive reliable security is required.


Price Range

Entry-Level Value

Frame Style

Round corners



ADA Compliant (36" min.)


Swing Direction

One way

Closing Type


Mount Type(s)

Floor Posts or Wall Mount

Standard Width


Custom Width(s)

20" to 60"

Double Width


Exterior/Interior Use

Exterior or Interior



Post & Rail (custom sized)


Electronic Entry/Exit



SG100 SwingGate ADA Details

Design & Construction:

  • Stainless steel post and gate tubing (2″ diameter) with
    rounded corners
  • Heavyweight stainless base plate (1/4″ thick)
  • Decorative base plate flange cover (7″ diameter)
  • Interior or Exterior Use


    • 36″ ADA clear opening
    • One way swing – 90-degree swing
    • Self-closing, heavy-duty hinge with adjustable closer
    • Includes matching stop post with strike plate

Electrical Specifications:

Power supply input 115 VAC (0.6 amp) 60 Hz/ output 24 VDC (1.75 amp continuous). All components are UL recognized.


Units are warranted against defects in materials and workmanship
for a period of one year from date of delivery.
See warranty information for specific details


SG100 SwingGate ADA Options

  • Electromagnetic strike lock to interface with virtually all access control software and hardware
  • Fail-Safe (free passage on power failure)
  • Power Supply
  • Custom sized widths at no extra cost (20″ to 60″)
  • Custom sized matching post & rail to fill open space
  • Signage

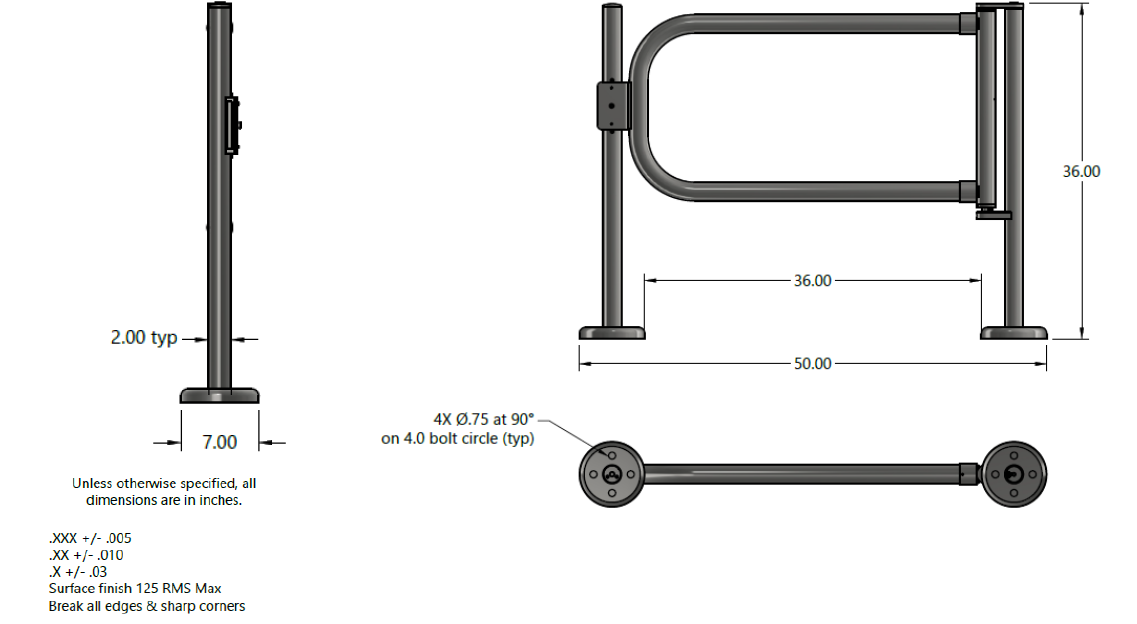

SG100 SwingGate ADA Dimensions


SG100 SwingGate ADA PDF Downloads

category SG100 ADA Compliant Swing Gate Brochure

category SwingGate SG100 ADA Compliant Pedestrian Gate Specifications

*Architects and specifiers should contact us for submittal packages, installation manuals, and more information about this product.
