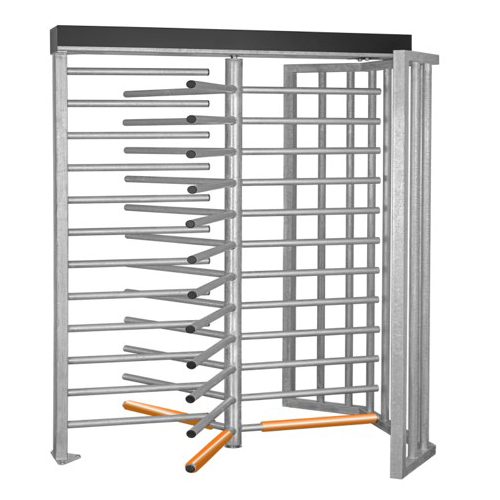

HT440 SecureTurn Full Height Turnstile (Wide Passage Width)

Wide Passage Full Height Turnstile

The SecureTurn HT440 couples maximum entrance and perimeter security with a wider passage width. The HT440 features tamperproof construction, floor to ceiling security, and can integrate with virtually all access control hardware and software. This full height turnstile can even be outfitted with numerous options and add-ons to further align it with your specific access control project needs.

Product Benefits

  • Wide passage width
  • Full height for maximum security
  • Self-centering mechanism
  • Strong and durable- Made in the USA
  • Built tough to last a lifetime
  • FREE Safety Sleeves

HT440 SecureTurn Full Height Turnstile (Standard Width) PDF Downloads

category HT440 Full Height Turnstile Brochure

category HT440 Full Height Turnstile Architectural Specifications

Want to Specify This Product? Contact Us Today to Gain Access to Our Specifications and Submittal Packages!

Need Installation?

Hayward Turnstiles has a nationwide network of partner installers. Our team is happy to coordinate installation with one (or multiple) of our certified installers who will handle the purchasing, installation, and integration of turnstiles and gates for you. One point of contact. One comprehensive warranty. One goal: complete project satisfaction.

Contact Us to Begin Your Project!

Applications

Applications:

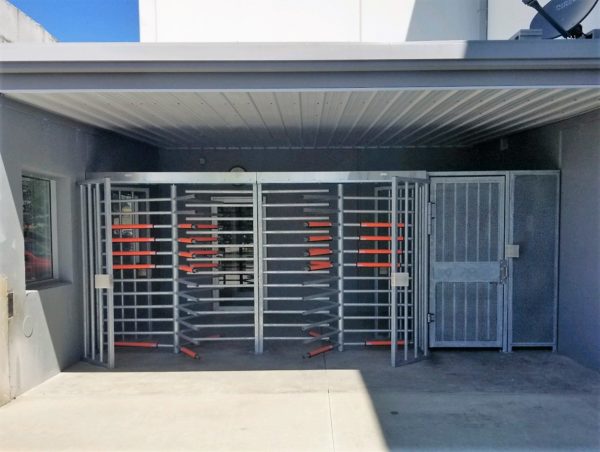

The SecureTurn HT440 is the perfect access control choice for when you are looking for maximum security levels coupled with a wider passage width. Our HT440 is often paired with our matching HTG-M full height gate to provide a comprehensive, ADA compliant entry solution. Construction sites, factories, fulfillment warehouses, detention centers, public transportation, government/military facilities, and more all benefit from the added perimeter security and access control offered by an HT431 full height turnstile. Indoors or outdoors, the HT440 full height turnstile is perfect for any high security or access control application.

Materials and finishes available in:

  • Hot Dip Galvanized Steel
  • Powder Coated Steel

*Stainless Steel finish available with the HT439 Full Height Turnstile

Other single passage models in this series:

SecureTurn HT431 Standard Pasage 31″

SecureTurn HT439 Wide Passage 39″

SecureTurn HT448 Extra Wide Passage 48″

Double passage models in this series:

SecureTurn HT431T tandem size for standard passage consists of (2) SecureTurn HT431 in a space-saving layout.

Padded Safety Sleeves help prevent accidents and enhance turnstile usability (optional):

Prevents injuries – Reduces bruising – Stops heel slams

Softens impacts – Easy-grab cushion grip

Cool to the touch in heat – Insulates bars in cold, LEARN MORE

Matching ADA Compliant Full Height Gate:
HTG-M Full Height ADA Handicap Gate

Specs

Finish

Galvanized, Powder Coat

Passage Width

Wide (40")

Overall Width

82"

Safety Sleeves

Free Heel Pack (3 Sleeves)

Electronic Entry/Exit

Optional

Reader Mounting Plates

Optional

Electronic Counter

Optional

Key Override

Optional

Status Indicator Lights

Optional

Matching ADA Gate

HTG, HTG-M

Mounting Surface (level)

Concrete Recommended

Details

HT440 SecureTurn Full Height Turnstile (Wide Passage Width) Details

Product Features:

Materials and finishes in your choice of:

  • Hot dipped galvanized steel
  • Powder Coated steel

Design & Construction:

  • Designed for secure operations with aesthetics in mind
  • Choice of right or left handed direction
  • Fully welded exterior components
  • Heavy-duty lifetime construction

Turnstile Operation:

  • Self-centering mechanism with hydraulic shock suppression
  • Permanently lubricated bearings
  • Clockwise, counterclockwise, or bi-directional passage

Electrical Specifications:

Power supply input 100-240VAC (.7 amp) 50/60hz output
24VDC (1.1 amp) All components UL recognized

Warranty:

Units are warranted against defects in materials and
workmanship for a period of one year from date of
delivery. See warranty information for specific details.

Options

HT440 SecureTurn Full Height Turnstile (Wide Passage Width) Options

Options:

  • Electronic locking module featuring heavy-duty 24 VDC
    solenoids that can integrate with virtually all access control software and hardware via a momentary dry contact
  • Choice of fail safe (unlock on power loss) or fail secure (lock
    on power loss) for electric units only
  • Card reader mounting plates (electric units only)
  • Key override for electric or manual units (both directions)
  • Red/Green indicator lights (electric units only)
  • Safety Sleeves (Safety Orange or Steel Gray)
  • Heavy-duty lock bar (includes HD padlock)
  • Additional options available upon request

Dimensions

HT440 SecureTurn Full Height Turnstile (Wide Passage Width) Dimensions

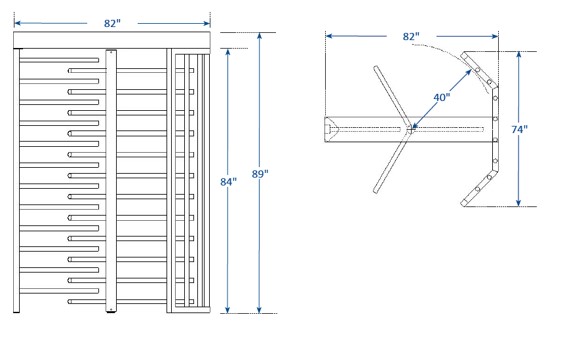

categoryHT440 Wide Passage Full Height Turnstile Complete Dimensions

full height turnstile wide passage dimensional drawings

PDF

HT440 SecureTurn Full Height Turnstile (Standard Passage Width) PDF Downloads

category HT440 Full Height Turnstile Brochure

category HT440 Full Height Turnstile Architectural Specifications

Want to Specify This Product? Contact Us Today to Gain Access to Our Specifications and Submittal Packages!

Prices

    Here's what you will get:

    • Quoted Price
    • Specs & Dimensions
    • Design Assistance
    • Layout Drawings
    pdf
