SG450 SwingGate ADA

The SG450 premium ADA gate has an aesthetically pleasing look with a modern style to fit today’s world. This model features a framed glass gate with a self-closing, bi-directional door. This model’s unique design uses a hidden hinge system, which eliminates the need for external hinges or brackets. This unit is available in both standard ADA compliant or custom sized lane widths. Built for extreme use, this model handles heavy traffic with easy.

Product Benefits

  • Premium model
  • Framed glass door
  • Aesthetically appealing design
  • Hidden hinges
  • One or two-way swing (self-closing)
  • ADA & custom sizes lane widths

SG450 SwingGate ADA PDF Downloads

category SG450 ADA Brochure

Want to Specify This Product? Contact Us Today to Gain Access to Our Specifications and Submittal Packages!



Need Installation?

Hayward Turnstiles has a nationwide network of partner installers. Our team is happy to coordinate installation with one (or multiple) of our certified installers who will handle the purchasing, installation, and integration of turnstiles and gates for you. One point of contact. One comprehensive warranty. One goal: complete project satisfaction.

Contact Us to Begin Your Project!

Applications

Applications:

Handicap gates provide authorized access for easy entry and/or
exit. They restrict traffic, provide handicap accessibility, and are
frequently used as an access point for hand trucks, carts, and
deliveries. Popular applications also include use at schools, libraries,
mass transit, office buildings, and health club facilities.

The SG450 is our premium framed glass panel gate with a
stainless steel finish and self-closing door.
The rectangular modern glass design has an architectural appeal
with hidden hinges, center post pivot, and two large diameter posts.
All models have a 36″ clear ADA door opening for handicap access
with your choice of a one-way 90-degree swing, or two-way 180-degree
swing.

Available options include: electric magnetic strike lock for one or
two way swing (integrates with access control systems), push button
activation (momentary or timer), and custom size widths.

Specs

Price Range

Premium Value

Frame Style

Framed Glass Door

Frame

Stainless

ADA Compliant (36" min.)

Yes

Swing Direction

One or Two Way

Closing Type

Self-close or Adjustable

Mount Type(s)

Floor Posts (2)

Standard Width

Single: 36" or 42"

Custom Width(s)

30" to 42"

Double Width

N/A

Exterior/Interior Use

Exterior or Interior

Signage

N/A

Post & Rail (custom sized)

Optional

Electronic Entry/Exit

Optional

Details

SG450 SwingGate ADA Details

Design & Construction:

  • Stainless steel post (4″ diameter)
  • Decorative flange cover (7″ round or 4-3/4″ wide x 7-1/4″
    long rectangular)
  • 3/8″ tempered glass
  • Interior or Exterior Use

Specifications:

  • 36″ ADA opening
  • One-way 90 degree swing or two-way 180 degree swing
  • Hidden hinges and center post pivot
  • Self-closing, heavy-duty hinge with adjustable closer
  • Includes matching stop post with strike plate

Electrical Specifications:

Power supply input 100-240VAC (.7 amp) 50/60hz output
24VDC (1.1 amp) All components UL recognized

Warranty:

Units are warranted against defects in materials and
workmanship for a period of one year from date of delivery.
See warranty information for specific details.

Options

SG450 SwingGate ADA Options

Options:

  • Electronic locking module featuring heavy-duty
    24 VDC solenoids
  • Fail-Safe (free passage on power failure)
  • Interfaces with card readers, PC attendance systems, wireless remotes
    and push-button activation (momentary or timer)
  • Custom sized widths

Dimensions

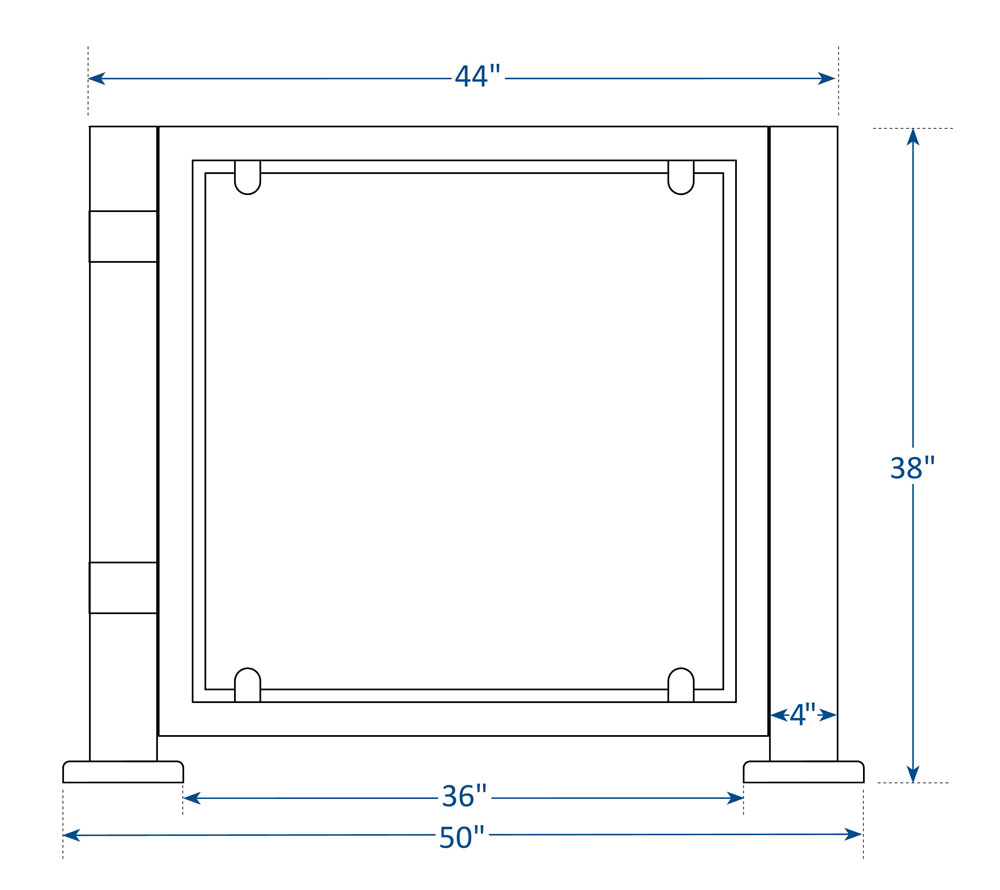

SG450 SwingGate ADA Dimensions

dimensions

PDF

SG450 SwingGate ADA PDF Downloads

category SG450 ADA Brochure

*Architects and specifiers should contact us for submittal packages, installation manuals, and more information about this product.
