EZ Lane SG High Swing Glass Optical Turnstile

The EZ Lane SG is our premium model in the swing glass series and offers cabinets with square or rounded ends. The glass is available in a variety of heights – depending upon your security needs. The glass swing is bi-directional permitting immediate passage from both directions. They are designed to prevent tailgating and can be configured for ADA compliance.

Product Benefits

  • Narrow profile cabinet
  • Enhanced barrier security
  • Full height swing glass panels
  • High throughput
  • Bi-directional
  • Tailgate detection
  • Crawl detection
  • Audible & visible alerts

EZ Lane Drop Arm Optical Turnstile PDF Downloads

category EZ Lane Drop Arm Catalog Sheets Specifciations.pdf



Applications

Applications:

The EZ Lane SG High Swing Glass Turnstile is our least expensive
high swing glass model that offers an enhanced level of security with a full
high glass barrier. The glass swing is bi-directional, permitting immediate
passage. They are designed to prevent tailgating and can be
ADA compliant.

Specs

Price Range

Mid-Range

Security Type

Enhanced

Barrier Height

52"

Cabinet Width x Depth

7" W x 51" pr 54" D

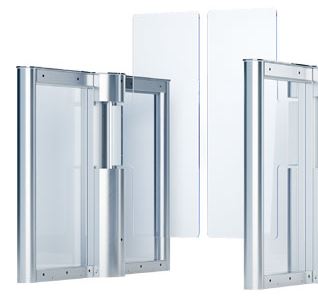

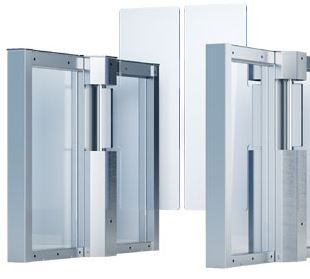

Cabinet End Style

Square or Round

Lane Width

30" or 36" (ADA)

Entry/Exit Control

yes

Bi-Direct/Card Stack

yes

Visible/Audible Alerts

yes

Tailgate/Crawl Detect

yes

Floor Mount Platform

option

Remote Lane Software

option

Details

STANDARD FEATURES

Quick and smooth motorized swing glass for bi-directional turnstile operation

Optical Detection:

LED’s linked to 32-bit CPU

Throughput/Capacity:

Up to 50 passages per minute for fast user throughput

Card Stacking:

  • Lane remains open while authorizing multiple credentials
  • Increases throughput during busy periods
  • Allows simultaneous transactions

Alerts (Visible LED & Audible):

  • Access Allowed: Green arrow and confirmation tone
  • Access Declined: Red X and rejection tones

Lane Status LED’s (2):

Located at each end on pedestal tops

Tailgate Detection:

• Assures that only one person enters for each authorized credential
• Prevents “Piggybacking” by unauthorized persons

Crawl Under Detection:

Optical LED’s detect all movement 8″ above the floor

Reader Integration:

• Easily integrates to access control and fire safety systems
through dry contact
• Reader mounts internally in cabinet under lane status LED
• Factory installation available – End user supplied reader

Power Failure/Emergency Mode:

• Barrier easily pushes open at power failure/emergency
• Barrier auto-resets when power is restored

Power Requirement:

24 VDC – Maximum power consumption 90-180 W

Cabinet Style:

Stainless steel w/square or round ends and tempered glass top

Glass Color Choices (swinging panels and sidewalls):

Choice of Glass Colors in clear, dark gray, blue or bronze tint

Quality Control:

Every unit is inspected, tested, and certified before shipment

Options

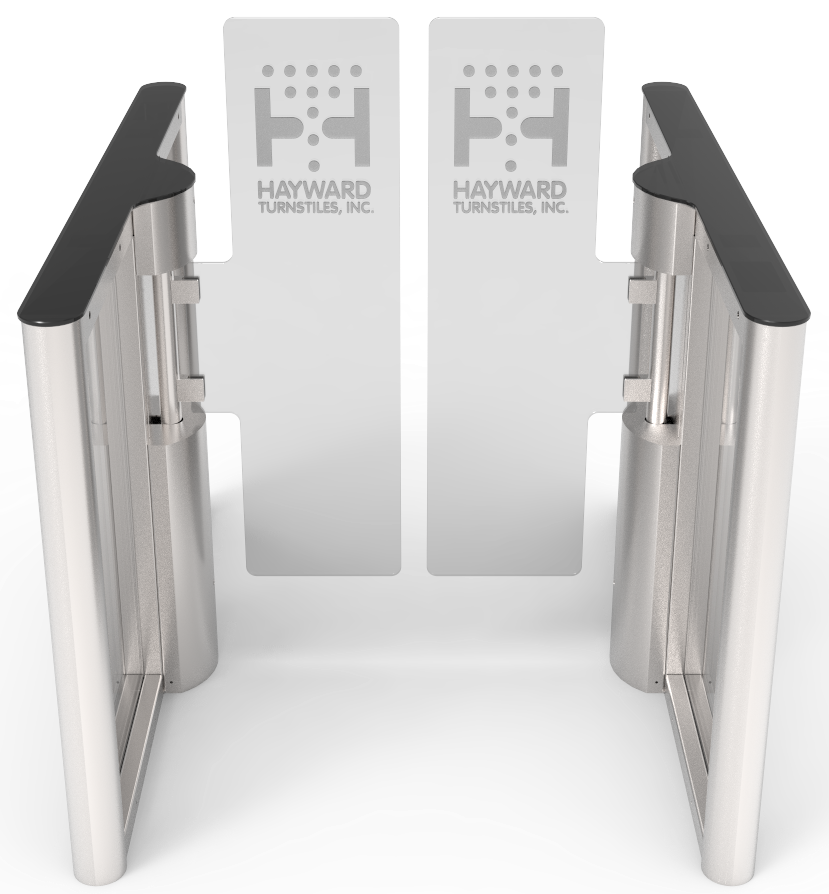

Glass Panel Etching:

Personalization of Glass Panels by etching (e.g. Company Logo)

Remote Lane Controller:











• Remotely control and change your Optical Turnstile parameters
• Perform diagnostic checks, analyze alarms, display patron counts and much more from an external color LCD touch screen

Lane Mounting Platform (for above floor wiring):

• Cabinet is mounted on pedestal base to conceal wiring
• Walk over conduit for quick installation (no-drilling)



Dimensions

Dimensions

EZLaneHi-SwingGlassEnhanced

PDF

Informational PDF’s

[wp-svg-icons icon=”file-pdf” wrap=”i”]  Optical Swing High Glass Catalog Specifications

[wp-svg-icons icon=”file-pdf” wrap=”i”]  Optical Quote Checklist Hayward

[wp-svg-icons icon=”file-pdf” wrap=”i”]  Optical Compare Models
