EZ Lane GT Low Retractable Glass Optical Turnstile

The EZ Lane GT Optical Turnstile is our top of the line optical turnstile featuring a retractable glass barrier. When fully closed, the glass panels meet in the middle for maximum security. This model’s advanced design allows the glass panels to fully retract into the cabinet, creating a concealed look.



Product Benefits

  • Premium optical model
  • Waist high retractable barrier functionality
  • High throughput
  • Bi-directional
  • Card stacking
  • Tailgate detection
  • Crawl detection
  • Audio and video alerts

EASY SETUP

LED ALERTS

SOUND SIGNALING

OPTICAL SENSORS

EMERGENCY EXIT FUNCTION

OVERLOAD PROTECTION

Applications

Applications:

The EZ Lane GT Low Retractable Glass Optical Turnstile is our premium retractable model that offers standard security. The waist high glass panels on this model meet at the center of the lane to create a barrier. Upon opening, the glass panels fully retract into the cabinet for a full passage width opening. They are designed to prevent tailgating and can be ADA compliant.

Specs

Price Range

Super Premium

Security Type

Maximum

Barrier Height

72"

Cabinet Width x Depth

14" or 22" W x 48” D

Cabinet End Style

Square or Round

Lane Width

22" or 36" (ADA)

Entry/Exit Control

yes

Bi-Direct/Card Stack

yes

Visible/Audible Alerts

yes

Tailgate/Crawl Detect

yes

Floor Mount Platform

option

Remote Lane Software

option

Details

STANDARD FEATURES

Hands-free Operation:

Quick and smooth motorized swing glass for bi-directional turnstile operation

Optical Detection:

LED sensors detect passage with high accuracy

Throughput/Capacity:

Up to 50 passages per minute allowing for fast user throughput

Card Stacking:

  • Lane remains open while authorizing multiple credentials
  • Increases throughput during busy periods
  • Allows simultaneous verifications (good for groups)

Alerts (Visual and Audio):

  • Access Granted: Green arrow and a confirmation tone
  • Access Declined: Red X and a rejection tones

Lane Status LED’s (2):

Located at each end on pedestal tops. indicate whether the lane is open or not.

Tailgate Detection:

• Assures that only one person enters for each authorized credential
• Prevents “Piggybacking” by unauthorized entrants

Crawl Under Detection:

Optical LED’s detect all movement 8″ above the floor

Reader Integration:

• Easily integrates to access control and fire safety systems
through a dry contact
• Reader mounts internally inside cabinet under lane status LED
• Factory installation available – End-user must supply reader

Power Failure/Emergency Mode:

• Barrier easily pushes open at power failure/emergency
• Barrier auto-resets when power is restored

Power Requirement:

24 VDC – Maximum power consumption 90-180W

Quality Control:

Every unit is inspected, tested, and certified before shipment.

Options

ADD-ONS:

Frame Finish Color (no charge for Inox):

Inox

Galvanized

RAL 5010

RAL 9003

RAL 7016

Galvanized+RAL (two-tone)

Glass Panel Etching:

Personalization of Glass Panels by etching (e.g. Company Logo)

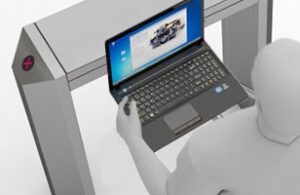

Remote Lane Controller:











Use an external color LCD touch screen monitor to:

  • Remotely control and change how your optical turnstile functions
  • Perform diagnostic checks and analyze alarms
  • Display patron counts and other analytics

Dimensions

DIMENSIONS

dimensions
