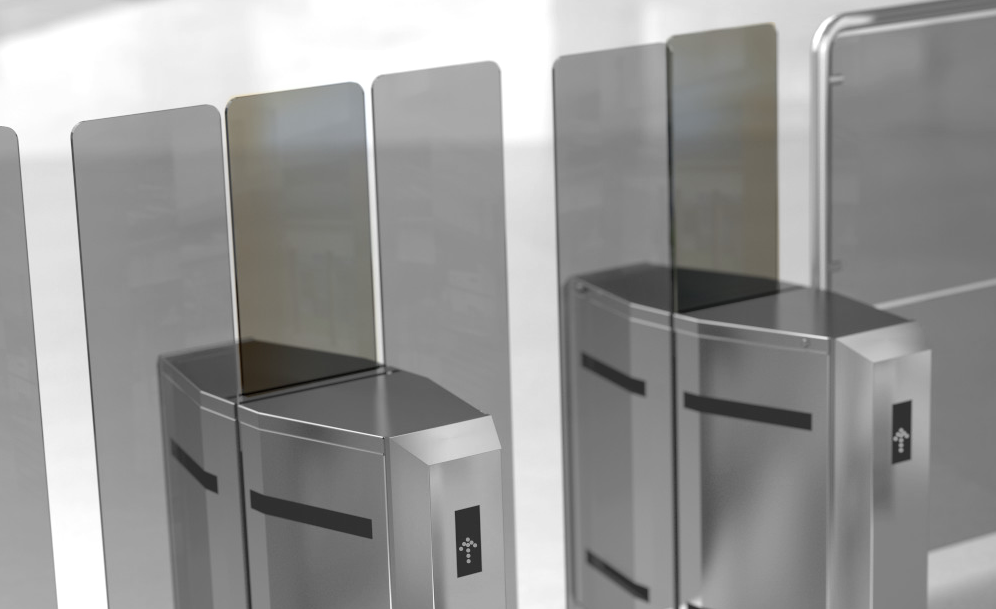

EZ Lane GT High Retractable Glass Optical Turnstile

The EZ GT Optical Turnstile is our top of the line optical turnstile featuring a retractable glass barrier. When fully closed, the glass panels meet in the middle for maximum security. This model’s advanced design allows the glass panels to fully retract into the cabinet, creating a concealed look.

Product Benefits

  • Premium optical model
  • Maximum barrier security
  • Full-height retractable glass panels
  • Bi-directional
  • Card stacking optional
  • Tailgate detection
  • Crawl detection
  • Audible & visible alerts

EASY SETUP

LED ALERTS

SOUND SIGNALING

OPTICAL SENSORS

EMERGENCY EXIT FUNCTION

OVERLOAD PROTECTION

Applications

Applications:

The EZ Lane GT High Retractable Glass Optical Turnstile is our premium retractable model that offers enhanced security. The full height glass panels on this model meet at the center of the lane to create a barrier. Upon opening, the glass panels fully retract into the cabinet for a full passage width opening. They are designed to prevent tailgating and can be ADA compliant.

Specs

Price Range

Premium

Security Type

Maximum

Barrier Height

67"

Cabinet Width x Depth

13" or 19" W x 50” D

Cabinet End Style

Trapezoidal

Lane Width

22" or 38" (ADA)

Entry/Exit Control

yes

Bi-Direct/Card Stack

yes

Visible/Audible Alerts

yes

Tailgate/Crawl Detect

yes

Floor Mount Platform

option

Remote Lane Software

option

Details

STANDARD FEATURES

STANDARD FEATURES

Quick and smooth motorized retractable full-height glass for bi-directional operation.

Optical Detection:

LED’s linked to 32-bit CPU.

Throughput/Capacity:

Up to 50 passages per minute for fast user throughput

Card Stacking:

  • Lane remains open while authorizing multiple credentials
  • Increases throughput during busy periods
  • Allows up to 50 simultaneous transactions

Alerts (Visible LED & Audible):

  • Access Allowed: Green arrow and confirmation tone
  • Access Declined: Red X and rejection tones (3 types)

Lane Status LED’s (2):

Located at each end on pedestal front

Tailgate Detection:

• Assures that only one person enters for each authorized credential
• Prevents “Piggybacking” by unauthorized persons

Crawl Under Detection:

Optical LED’s detect all movement 6″ above the floor

Reader Integration:

  • Easily integrates to access control and fire safety systems
    through dry contact
  • Reader mounts internally in cabinet under lane status LED
  • End-user supplied reader – factory installation available

Power Failure/Emergency Mode:

  • Includes battery back-up for temporary operation
  • Barrier auto-resets when power is restored

Power Requirement:

24 VDC – Maximum power consumption 90-180 W

Cabinet Style:

• Stainless steel with stainless steel top
• Choice of Glass Panel Color (clear, dark gray, blue or bronze)

Quality Control:

Every unit is inspected, tested, and certified before shipment.

Options

OPTIONS:

Climb Over Prevention:

The addition of a stationary high glass panel inside and above the turnstile cabinet prevents crawl over of the cabinet

ADD-ONS:

Frame Finish Color (no charge for Inox):

Inox

Galvanized

RAL 5010

RAL 9003

RAL 7016

Galvanized+RAL (two-tone)

Glass Panel Etching:

Personalization of Glass Panels by etching (e.g. Company Logo)

Remote Lane Controller:

• Remotely control and change your Optical Turnstile parameters
• Perform diagnostic checks, analyze alarms, display patron counts and much more from an external color LCD touch screen

Dimensions

DIMENSIONS
